Application area

• Printing method: Gravure printing, flexo printing, web offset printing, digital printing, screen printing, converting machines
• Materials: paper, plastic film (PE, BOPP, OPP, LDPE and more; transparent, translucent, opaque, reflective), aluminum

System performance

• Max. Web speed:1.000 m/min
• Max. Web width: 2.850 mm
• Ambient temperature: 0-42 °C
• Min. error size: 0,01 mm² at 3% gray value deviation

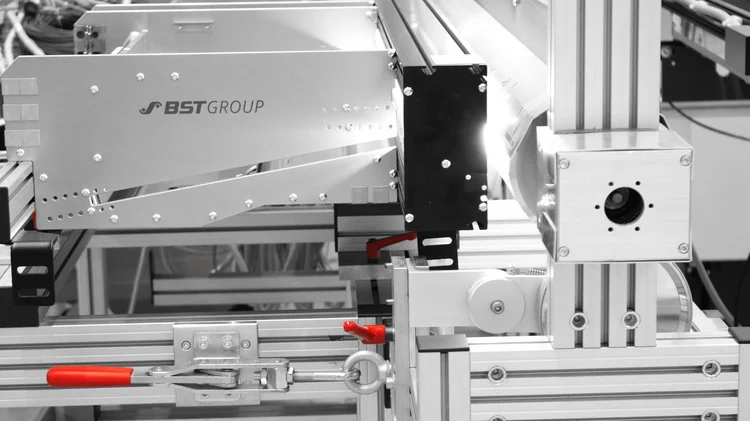

Camera

• Type: RGB color line scan camera
• Quantity: 1-4
• System resolution: 3*16K RGB
• Camera resolution: 3 x 4096 pixel
• Max. Image resolution: 0,1 mm/pixel
• Interface: Camera Link with 85 MHz

Lighting Options

• Type: LED
• Type:Main illumination for all opaque materials incl. reflective materials, backlight for transparent materials*

Operating monitor

• Type: 23 inch TFT multitouch
• Resolution:1920 x 1080 pixel
• Signal input:DVI

Supply voltage

• Voltage:115 / 230 V AC / 50-60 Hz
• Current consumption: application-dependent

Inputs/Outputs

• Input / Output: Alarm signal (error, warning, good) / roll change
• Voltage: 24 V DC
• Input current / max. output current: 7 mA / 100 mA per output, short-circuit protected
