regi_star 20 – Precision in register control meets performance
eltromat regi_star 20

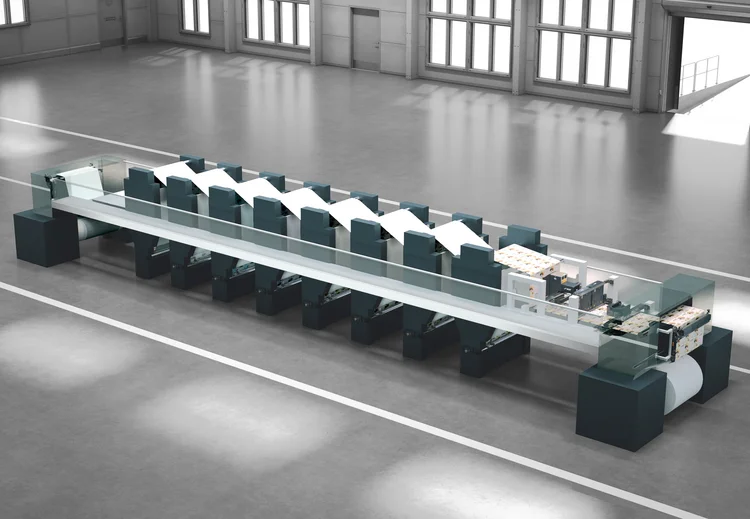

It is the perfect solution for high end register control for all types of printing application, especially for gravure or stacked flexo machines.
Description
Precision and efficiency are essential. eltromat regi_star 20 from BST combines state-of-the-art technology with decades of experience to provide reliable and fully automatic register control. The result: less waste, shorter setup times, and higher productivity even at the highest machine speeds.

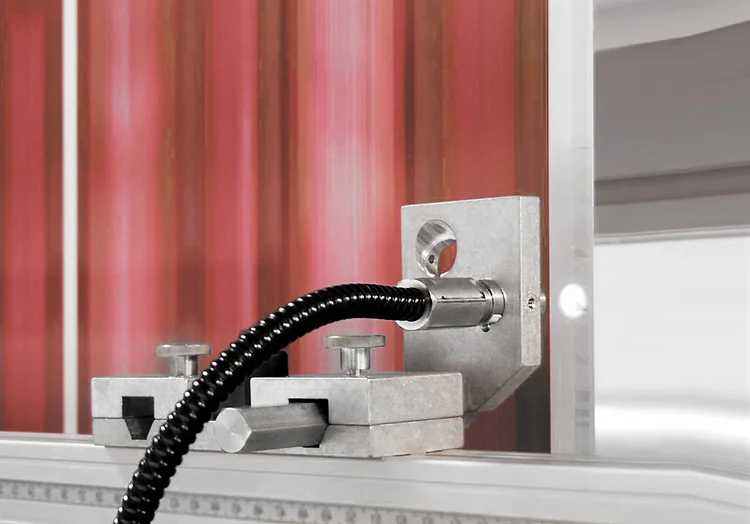

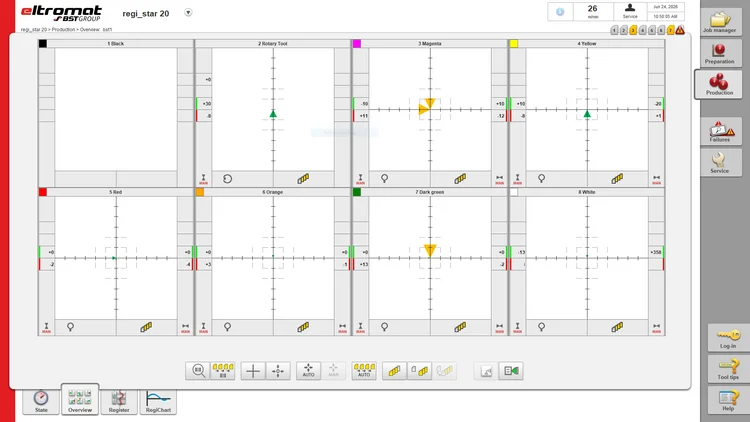

The adaptive RSH sensor ensures reliable detection even of low-contrast or metallized marks and guarantees consistent register accuracy without manual adjustments. The intuitive touchscreen user interface with integrated online help simplifies operation and eliminates operating errors.
The open system architecture enables seamless integration into all common printing technologies such as gravure, flexographic, offset, and screen printing.
eltromat regi_star 20 PRO is a special version of the standard register control system regi_star 20. The PRO version is especially designed for applications that require extremely high register accuracy, e.g., printed electronics.
What are your values?
- Lower production costs and minimal waste
- Faster setup and changeover of jobs
- User-friendly operation with intuitive interface
- Maximum quality at maximum machine speed
- Flexible machine integration and easy expansion
- Future-proof thanks to modular upgrades
eltromat regi_star 20 – the ideal register control solution for demanding printing processes
Features
regi_star 20 is designed for flexibility and scalability, offering a range of powerful options:

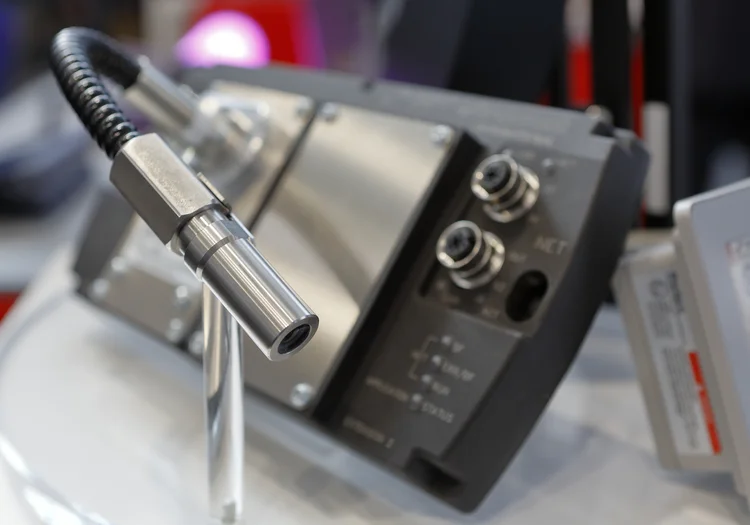

- RSH fiber optic sensor: precise and reliable mark detection also in explosion prove areas (ATEX certified)
- RSC matrix camera sensor: precise register control by micro dot marks (variant for explosion prove areas on request)
- RSH UV sensor: secure detection of ultraviolet varnishes
- Control algorithms: high dynamic register control algorithm for every application
- Insetter modules: register-controlled insetting of pre-printed webs
- Front-to-back control: controlling double side printing in web-web and web-cylinder measurement
- RegiChart: real-time register trend visualization
- RegiTouch: easy semi-automatic presetting
- PilotControl: predictive automatic adaptation to changing production conditions

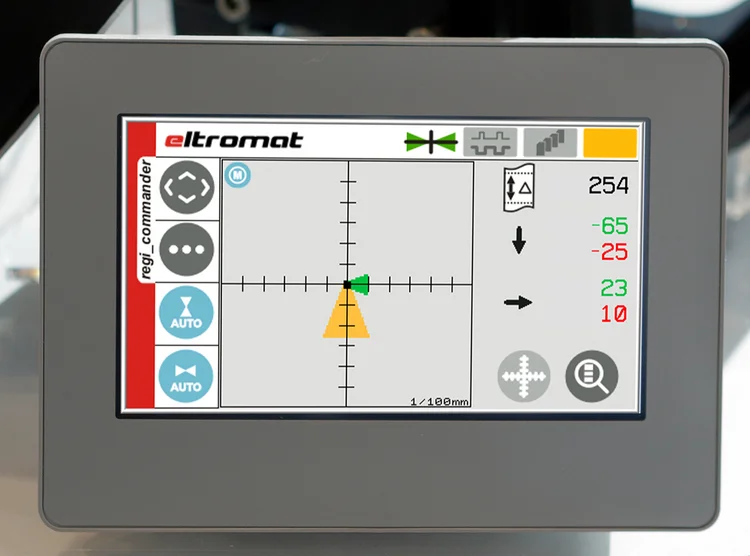

- regi_commander: controlling the process directly at the unit
- External control keypad: convenient and simultaneous input of operating commands
- Chart outputs: logging register deviations
- System Integration: powerful interfaces for integration, process analysis and optimization
Technical Details
Number of controls
up to 20
Maximum web speed
1.200 m/min
Applications
Gravure, flexo, offset, digital, screen printing, insetter solution, hybrid machines, processing and downstream units
Materials
Paper, foils/films (transparent/opaque), metallized substrates
Control algorithms
Gravure, offset, insetter
Measurement methods
Web-web, web-cylinder
Sensor variants
RSH fiber optic, RSH digital, RSH UV, RSC matrix camera
Register marks
Wedge marks, block marks, micro dot marks, special printing features
ATEX
RSH fiber optic: yes
RSC matrix camera: on request
Interface
Digital I/O (PWM), Ethernet, PROFIBUS, PROFINET
Operation
Full-HD touchscreen monitor
Downloads
-
eltromat regi_star 20 brochureMore information about the register control system regi_star 20.BST_HELP Open -
regi_star 20 & TWINStar register mark specificationMore Information about the register marks for our register control systems regi_star 20 and TWINStar.BST_HELP Open -
Comparison of register controlCompare our register control systems to get an easy and quick overview.BST_HELP Open -
Brochures at a glanceGet an overview about our product portfolio and download the needed brochures via QR code.BST_HELP Open
BST register control – Whether label, packaging, or decorative printing – intelligent register control solutions ensure perfect print quality.
With regi_star 20, you can ensure maximum precision at all times and reliably manage even demanding production conditions. What makes it special is the combination of decades of experience and the constant pursuit of perfection.
