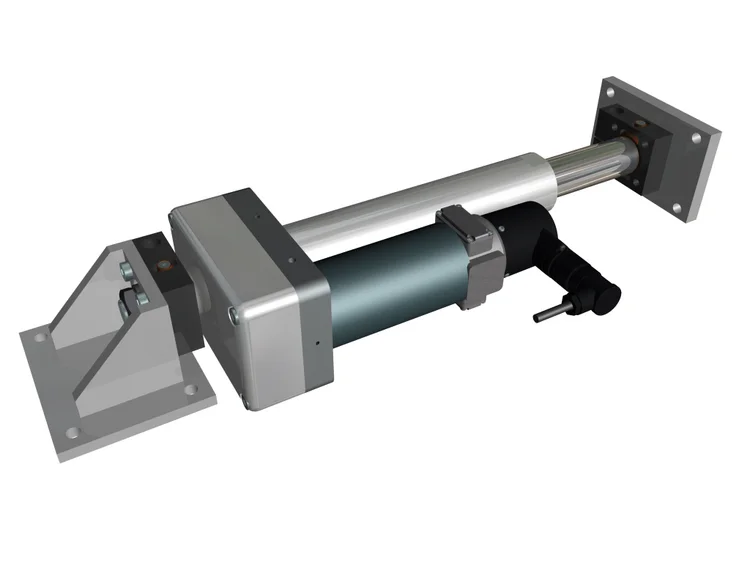

EMS 22 – Robust actuator for demanding web guiding applications
EMS 22
Description
BST EMS 22 is built for performance, precision, and durability. Featuring a ball-screw drive and integrated absolute position feedback, it ensures accurate and repeatable motion even under heavy load.
Available in two configurations, 2.250 N at 10 mm/s or 1.125 N at 20 mm/s, EMS 22 can be easily adapted to the needs of different production processes. With its compact design and plug-and-play integration, the actuator is ideal for both new installations and retrofit solutions in web guiding systems.
EMS 22 ensures fast, strong, and accurate adjustments, maintaining optimal web position at all times. Its maintenance-free drive unit minimizes downtime, while the integrated position feedback system provides consistent control accuracy. The IP 54 protection class makes the actuator suitable for continuous use in demanding environments.
What are your values?
- High positioning force for stable web correction under heavy loads
- Maintenance-free operation ensures maximum uptime
- Quick setup through plug-and-play integration
- Compact housing for flexible installation options
- Reliable feedback system for long-term precision
EMS 22 – Powerful, precise, and reliable actuator for perfect web guiding
Technical details
Nominal positioning force
2.250 N | 1.125 N
Nominal positioning speed
10 mm/s | 20 mm/s
Available strokes
100 mm | 195 mm
Position feedback
±9 V (max. 2 mA)
Electrical connection
via BST connecting cable
Certificate
CE/UL 2011, CSA C22.2/RoHS compliant
Protection class
IP 54
Downloads
-
Web guiding brochureMore information about our web guiding systems, components and functionality.BST_HELP Open -
EMS 22 product sheetMore information about the actuator EMS 22.BST_HELP Open -
ECO EMS 22 product sheetMore information about the actuator ECO EMS 22.BST_HELP Open -
UL-certificate of complianceOur web guiding components are UL-certified.BST_HELP Open -
Declaration of conformity and incorporationOur actuators correspond to the declaration of conformity and incorporation.BST_HELP Open -
Brochures at a glanceGet an overview about our product portfolio and download the needed brochures via QR code.BST_HELP Open
Videos
Get to know our web guiding solutions
Precision in motion that’s where actuators make the difference. BST actuators translate control signals into accurate mechanical adjustments. Whether pivoting frames, linear guides, or high-speed actuators: they reposition the web quickly, powerfully, and with repeatable accuracy, even at high speeds or with demanding materials.
With robust construction, high dynamics, and precise controllability, these actuators ensure smooth, stable web guiding. They form the strong backbone of every web-guiding system.
EMS 22 - Check out our high-performance actuator and enjoy the long-term reliability!
Stable web control is not possible without reliable actuators. Our systems work reliably with simple plug-and-play installation. Connect the web, switch on the power, and the control system is ready for use. Customers benefit from worldwide use in accordance with international standards. Particularly remarkable is the combination of robust technology and immediate readiness for use.
