CCD CAM 100 – Camera-based high-precision sensor
CCD CAM 100
Description

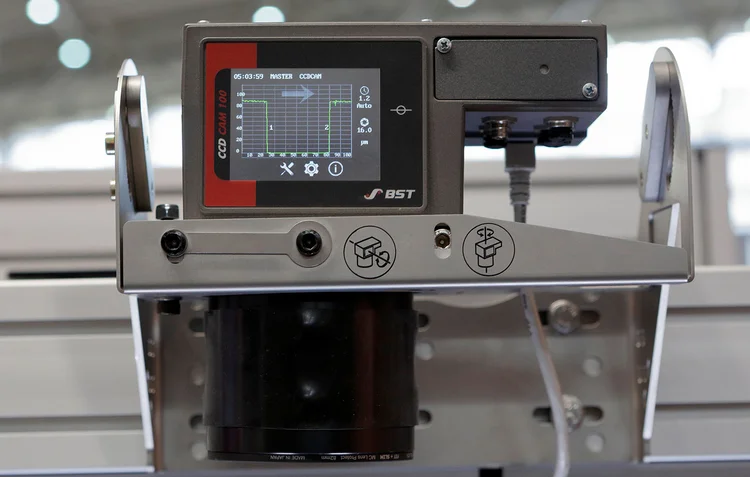

CCD CAM 100 is designed for applications requiring ultra-high precision in web edge measurement and web positioning. It can detect and measure multiple web edges simultaneously, achieving an exceptional resolution of up to 60.000 pixels. This guarantees the highest accuracy and repeatability, even under dynamic production conditions.
An integrated network interface allows setup data, while an SD card enables parameter transfer between cameras within minutes just to significantly reduce downtime. The integrated LED lighting projects reference points into the camera’s field of view for effortless alignment, and the built-in color touchscreen provides clear visualization of parameters.
With real-time image processing, and robust CAN-bus communication, CCD CAM 100 is the perfect choice for high-precision, multi-edge web guiding and measurement applications.
What are your values?
- Accurate multi-edge measurement for maximum process security
- Minimal downtime through quick sensor replacement via SD card
- Fast data exchange via network interface
- Compact design with integrated color touch display
- Integrated LED lightning project reference points
CCD CAM 100 – Precision redefined with maximum measurement accuracy for perfect web guiding and efficiency.
Technical Details
Measurement principle
RGB color chip (3 × 10.000 pixels)
Resolution
up to 60.000 pixels
Detectable web edges
up to 256
Lighting
Integrated LED points for alignment
Display
Built-in color touchscreen
Scan rate
up to 1 kHz
Interfaces
BST CANbus / network connection
Protection class
IP 54
Conformities
CE 2006/42/EG, RoHs 2015/863/EU, UL 2011, CSA C22.2 *3, File number E543387
Download the product sheet
-
CCD CAM 100 product sheetMore information about the sensor CCD CAM 100.BST_HELP Open
Downloads
-
Web guiding brochureMore information about our web guiding systems, components and functionality.BST_HELP Open -
CCD CAM 100 product sheetMore information about the sensor CCD CAM 100.BST_HELP Open
-
Declaration of conformityOur sensors correspond to the declaration of conformity.BST_HELP Open -
UL-certificate of complianceOur web guiding components are UL-certified.BST_HELP Open -
Brochures at a glanceGet an overview about our product portfolio and download the needed brochures via QR code.BST_HELP Open
Videos
Get to know our web guiding solutions
BST sensors detect the exact position of webs, ensuring stable and efficient web guiding. Whether optical, ultrasonic, or infrared, the sensors reliably detect web edges, web center line, contrast, lines or objects regardless of material or speed. Their fast response and robust design provide the foundation for high process reliability and minimal waste.
BST sensor technology – The foundation for stable processes, precise web guiding, and outstanding product quality.
With CCD CAM 100, you receive a camera-based sensor that precisely detects and measures various edges. You benefit from simple commissioning and operation. A particular feature is the versatility of the sensor, which is suitable for a wide range of applications.
