CLS CAM 200 – Perfect line and contrast guiding
CLS CAM 200
Description
CLS CAM 200 sensor is the logical further development of the proven CLS Pro 600. The matrix camera sensor controls with high precision and according to print lines, print edges or web edges. As with its predecessor, operation is as intuitive as possible. Thanks to a completely revised menu structure, the user guidance can be adapted to the respective application and thus streamlined. The sensor provides clear feedback on the measurement status and also works reliably with critical materials, e.g. reflective surfaces, thanks to the switchable bright and dark field illumination.

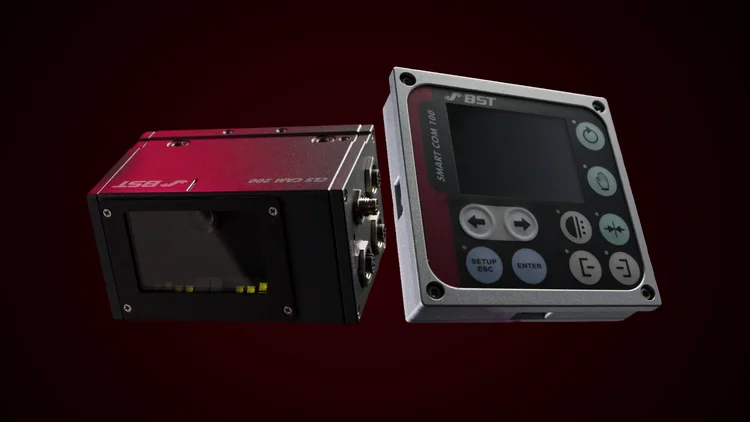

The new BST Commander SMART COM 100 enables simultaneous operation of sensor and control unit for the first time. Your advantage: fewer user interfaces and limited variety of parts, and therefore all relevant information at a glance.
Fully compatible with CLS Pro 600 applications, CLS CAM 200 eliminates inaccurate guiding, complex calibration, and extended downtime ensuring consistent quality, faster workflows, and stable production.
What are your values?
- High precision in line and contrast guiding
- Reliable performance even on challenging materials
- Reduced setup time through automatic job and setup storage
- Centralized operation via BST SMART COM 100
- Improved efficiency with real-time image processing
- Impurity free technology to minimize contamination risks caused by materials such as copper, zinc and nickel
CLS CAM 200 – A sensor for maximum precision, simple operation, and perfect quality at every time.
Technical Details
Measurement principle
Color-matrix camera with automatic LED lighting
Resolution
0,003 mm
Measuring range
25 mm
Measuring distance
20 mm
Max. web speed
up to 1.200 m/min
Lighting
Integrated bright/dark field LEDs (automatic control)
HMI
SMART COM 100
Protection class
IP 54
Conformities
CE 2006/42/EG, RoHs 2015/863/EU, UL 2011, CSA C22.2 File number E543387
Download the product sheet
-
CLS CAM 200 product sheetMore information about the sensor CLS CAM 200.BST_HELP Open
Downloads
-
Web guiding brochureMore information about our web guiding systems, components and functionality.BST_HELP Open -
CLS CAM 200 product sheetMore information about the sensor CLS CAM 200.BST_HELP Open
-
Declaration of conformityOur sensors correspond to the declaration of conformity.BST_HELP Open -
UL-certificate of complianceOur web guiding components are UL-certified.BST_HELP Open -
Brochures at a glanceGet an overview about our product portfolio and download the needed brochures via QR code.BST_HELP Open
Videos
Get to know our sensor CLS CAM 200
When line guiding requires ultimate precision, CLS CAM 200 delivers. This high-performance camera-based sensor reliably detects complex lines, contours, or contrasts to ensure precise web guiding. Enhanced resolution, fast image processing, and a robust design provide maximum stability even at high speeds.
Get to know our web guiding solutions
BST sensors detect the exact position of webs, ensuring stable and efficient web guiding. Whether optical, ultrasonic, or infrared, the sensors reliably detect web edges, web center line, contrast, lines or objects regardless of material or speed. Their fast response and robust design provide the foundation for high process reliability and minimal waste.
BST sensor technology – The foundation for stable processes, precise web guiding, and outstanding product quality.
With CLS CAM 200, you get a sensor that is 100% reliable and intuitive to use. What makes it special is its consistent further development with additional functions. Smaller, smarter, and even easier to use.
