IR 2011 – Precise web edge detection with optical technology

IR 2011

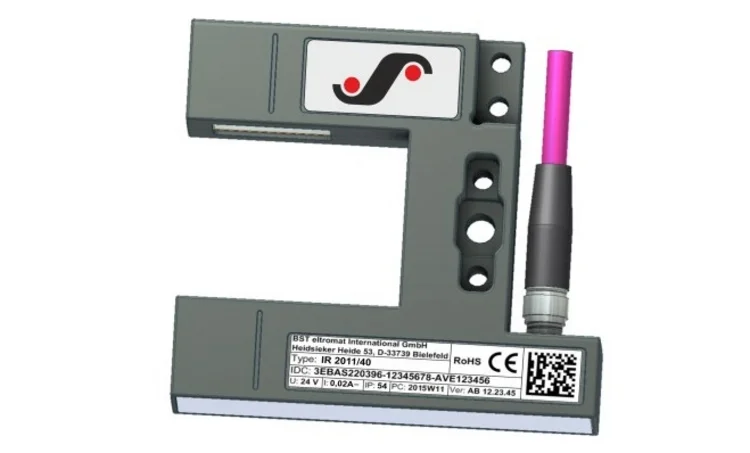

IR 2011 is a high-precision optical infrared sensor for contactless web edge seeking across a wide range of materials. It ensures accurate measurements, is resistant to ambient light and contamination and integrates seamlessly into existing systems. With automatic interference compensation and a maintenance-free design, IR 2011 delivers stable, reliable, and repeatable web guiding performance.

Description

The optical sensor BST IR 2011 provides reliable measurement independent of color, gloss, or lighting conditions.

Compensation for dust, light fluctuations, and vibration ensures consistently stable readings. Its compact design, IP 54 protection, and plug and play BST CANbus integration make IR 2011 a compact, maintenance-free solution for precise and efficient web guiding.

By combining optical precision and ease of integration, IR 2011 helps to reduce waste, improve process stability, and maintain consistent quality.

What are your values?

  • Accurate optical detection independent of ambient light
  • Reliable performance with transparent materials
  • Maintenance-free operation and compact design
  • Quick integration via plug and play via BST CANbus
  • Additional add-on for lens cleaning available
  • Available with impurity free technology to minimize contamination risks caused by materials such as copper, zinc and nickel

IR 2011 – Precision in every light reliable, robust, and maintenance-free.

Technical Details

Measurement principle

Optical

Fork widths

40 mm | 70 mm

Measuring range

Analog 16 mm, digital 20–24 mm (depending on version)

Output signal

BST CANbus
Analog 0-10 V

Protection class

IP 54

Installation

Plug and play, compatible with BST controllers

Conformities

CE 2006/42/EC, RoHS 2011/65/EU, UL 60947-5-2, CSA C22.2, File number E361072
