US 2010 – Precise web edge detection with ultrasonic technology

US 2010

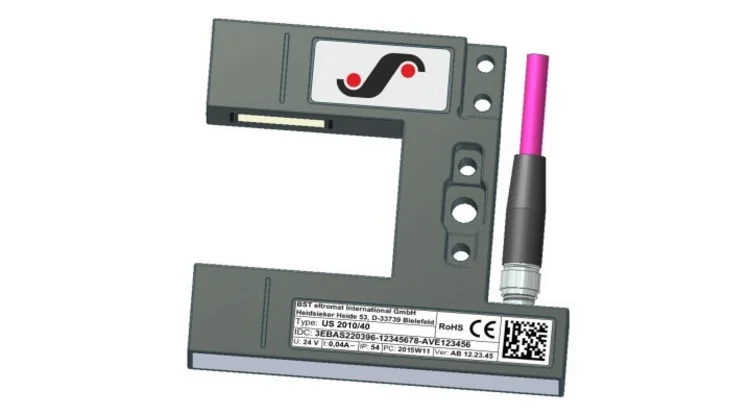

US 2010 is a compact and highly reliable ultrasonic sensor for contactless seeking of web edges across various production processes. It delivers accurate measurements, is resistant to contamination and material transparency variations, and features a compact, maintenance-free design. With plug and play compatibility to BST controllers, the US 2010 provides an efficient, durable solution for precise web guiding.

Description

Using ultrasonic, BST US 2010 measures the web edge without physical contact, providing stable and precise results regardless of transparency, color, or material thickness. US 2010 operates reliably even in dusty or high-vibration environments, where optical sensors often reach their limits.
Its compact design and simple integration via BST CANbus ensure fast setup and reliable operation.

US 2010 helps to reduce waste, increase uptime, and maintain consistent production quality.

What are your values?

  • Accurate detection independent of material transparency
  • Contactless measurement for long-lasting, maintenance-free operation
  • Reliable performance in challenging conditions
  • Improved efficiency through reduced downtime and consistent quality
  • Reliable stability with maximum immunity to interference from sound sources of any kind
  • Available with impurity free technology to minimize contamination risks caused by materials such as copper, zinc and nickel

US 2010 – Precise, compact and maintenance-free for reliable web guiding in every application.

Technical Details

Measurement principle

Ultrasonic

Fork widths

40 mm | 70 mm

Measuring range

12 mm

Output signal

BST CANbus
Analog 0-10 V

Protection class

IP 54

Operation

Contactless, maintenance-free

Installation

Plug and play, compatible with BST controllers

Conformities

CE 2006/42/EC, RoHS 2011/65/EU, UL 60947-5-2, CSA C22.2, File number E361072
