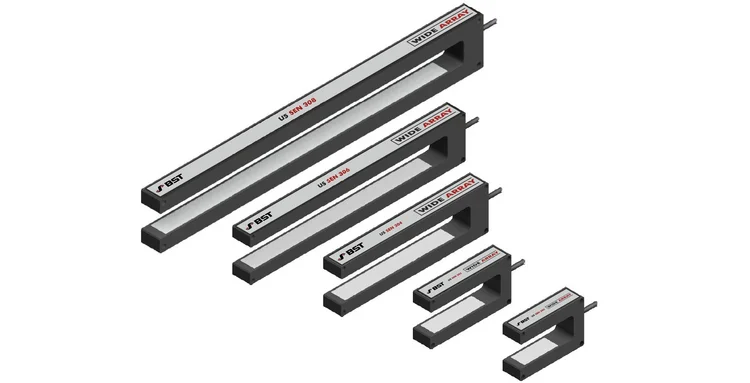

US SEN 3xx – Ultrasonic sensing for variable web widths
US SEN 3xx
Description
BST US SEN 3xx series ensure accurate and stable edge seeking, even when web widths vary. Ultrasonic waves measure web positions contactlessly, wear-free, and with minimal maintenance requirements.
Thanks to its large proportional measuring range, US SEN 3xx can be used without mechanical repositioning, even with significant width fluctuations. Which is an advantage in flexible production processes and frequent format changes.
The sensor is insensitive to material transparency, dust, and external sound interference, ensuring consistent performance in challenging conditions. Its robust design and simple integration via the BST CANbus guarantee stable signals, easy setup, and long-term operational reliability.
What are your values?
- Flexible operation without mechanical adjustment
- Accurate detection of transparent and reflective materials
- Low maintenance due to robust ultrasonic design
- Easy integration via BST CANbus
- Dynamic compensation adapts to changing process conditions in real-time
US SEN 3xx – Precise, flexible, and robust with ultrasonic sensing for maximum web stability.
Technical Details
Measurement principle
Ultrasonic
Fork widths
38 mm | 101 mm
Measuring range
30 – 467 mm
Digital output
BST CANbus
Protection class
IP 40
Operation
Contactless, maintenance-free
Installation
Plug and play, compatible with BST controllers
Conformities
CE 2014/30/EU, RoHs 2011/65/EU
Download the product sheet
-
US SEN 300 - 309 product sheetMore information about the sensors US SEN 300 - 309.BST_HELP Open
Downloads
-
Web guiding brochureMore information about our web guiding systems, components and functionality.BST_HELP Open -
US SEN 300 - 309 product sheetMore information about the sensors US SEN 300 - 309.BST_HELP Open
-
Declaration of conformityOur sensors correspond to the declaration of conformity.BST_HELP Open -
Declaration of conformity and incorporationOur sensors correspond to the declaration of conformity and incorporation.BST_HELP Open -
Brochures at a glanceGet an overview about our product portfolio and download the needed brochures via QR code.BST_HELP Open
