FRAMEGuide – Maximum precision in the smallest space
FRAMEGuide
FRAMEGuide Pro
The high-precision version FRAMEGuide Pro achieves repeat accuracies of up to ±0.01 mm for maximum performance, process reliability, and product quality.
Description
When production requires both speed and precision, FRAMEGuide is the perfect choice. This web guiding system combines compact design, dynamic control, and intelligent automation for consistent and accurate results.
The extremely low construction height and symmetrical frame design allow for easy integration into any machine setup. Optional motorized sensor positioning enables automatic adjustment of the web edge and web center to increase process reliability.

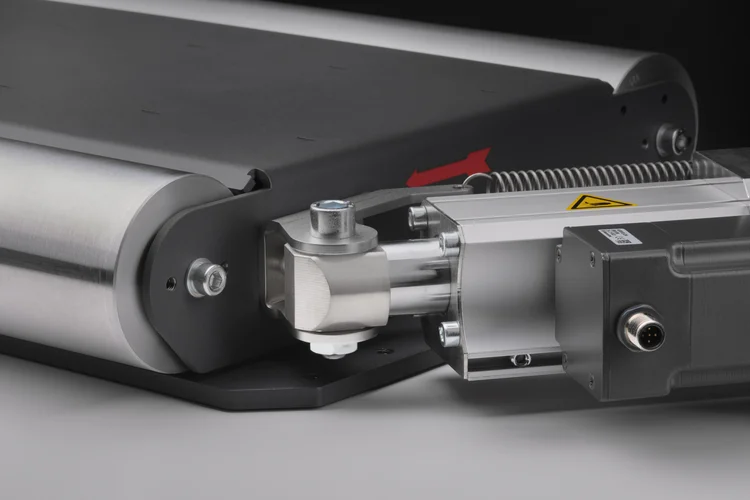

The high-precision FRAMEGuide Pro version features a highly dynamic brushless actuator and backlash-free components that enable repeatability of up to ±0.01 mm, making it ideal for demanding applications such as battery cell coating or precision printing.
FRAMEGuide combines high mechanical precision with intelligent sensor control and automation. As a result, the system ensures consistent web positioning, minimizes downtime and waste, and reduces process costs. Furthermore, it can be easily adapted to different materials and production processes.
What are your values?
- Highest precision with repeat accuracy up to ±0.01 mm
- Compact and flexible design for space-saving installation
- Reduced setup times via automated sensor positioning
- Sustainable operation with energy-efficient technology
- High process reliability in sensitive production environments
- Future-proof connectivity with modern fieldbus integration
- Impurity free technology to minimize contamination risks caused by materials such as copper, zinc and nickel
FRAMEGuide – Precision meets performance
Technical details
Web width
350 - 1.750 mm
Max. web tension
1.000 N
Repeat accuracy
±0,05 mm
±0,01 mm (FRAMEGuide Pro)
Sensor positioning
Manual
Motorized with automatic edge seeking
Communication
Digital I/O, CAN, Profibus DP, Profinet, Powerlink, EtherCAT, Ethernet UDP, Ethernet IP
Power supply
24 V DC
Download the product sheet
-
FRAMEGuide M product sheetMore information about the web guiding system FRAMEGuide M.BST_HELP Open -
FRAMEGuide Pro M product sheetMore information about the web guiding system FRAMEGuide Pro M.BST_HELP Open -
FRAMEGuide S product sheetMore information about the web guiding system FRAMEGuide S.BST_HELP Open -
FRAMEGuide Pro S product sheetMore information about the web guiding system FRAMEGuide Pro S.BST_HELP Open
Downloads
-
Web guiding brochureMore information about our web guiding systems, components and functionality.BST_HELP Open -
FRAMEGuide M product sheetMore information about the web guiding system FRAMEGuide M.BST_HELP Open
-
FRAMEGuide Pro M product sheetMore information about the web guiding system FRAMEGuide Pro M.BST_HELP Open
-
FRAMEGuide S product sheetMore information about the web guiding system FRAMEGuide S.BST_HELP Open
-
FRAMEGuide Pro S product sheetMore information about the web guiding system FRAMEGuide Pro S.BST_HELP Open
-
Declaration of conformity and incorporationOur web guiding systems correspond to the declaration of conformity and incorporation.BST_HELP Open -
Brochures at a glanceGet an overview about our product portfolio and download the needed brochures via QR code.BST_HELP Open
Videos
Get to know our FRAMEGuide
When maximum precision is required, FRAMEGuide sets a new benchmark. It controls the web position with exceptional accuracy. Just enabled by its innovative frame design, extremely short web path, and direct force transmission. The result: ultra-fast response, maximum stability, and flawless web guiding even with demanding materials and high production speeds.
Get to know our web guiding solutions
Precise web guiding is essential for stable and efficient production. BST web guiding systems keep a wide variety of materials precisely on track from unwinding through processing to rewinding. With advanced sensor technology, fast actuators, and intelligent controls, BST ensures maximum process reliability, reduced waste, and consistently high product quality.
Whether in packaging, printing, battery production, or film converting: BST web guiding systems form the basis for smooth operation and precise web positioning, even at high speeds and with demanding materials.
Optimize your web guiding with our FRAMEGuide!
With FRAMEGuide, customers can ensure precise web guiding even with minimal installation height. The design is unique, enabling maximum control accuracy and remaining future-proof and flexibly expandable thanks to its modular structure.
