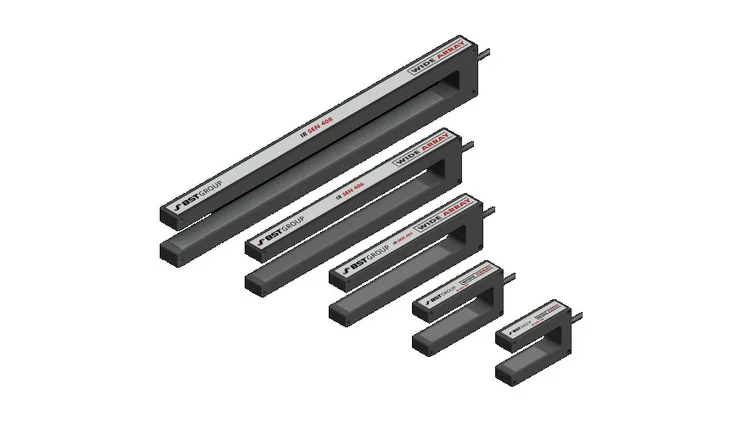

IR SEN 4xx – Infrared precision for variable web widths
IR SEN 4xx
Description
BST IR SEN 4xx series ensures accurate and stable web edge seeking, even with significant variations in web width and material type. Using infrared light, it provides highly precise measurements.
Its large proportional measuring range allows operation without mechanical repositioning, even when web width fluctuates, saving setup time and improving process reliability.
IR SEN 4xx sensors are resistant to ambient light, dust, and vibration, making them ideal for demanding production environments. Integrated via BST CANbus, they guarantee fast communication and stable signals for precise web guiding performance.
What are your values?
- Flexible use for variable web widths without mechanical adjustment
- Reliable performance through ambient light and dust resistance
- Easy integration via plug and play integration
- Maintenance-free operation with durable design
Dynamic compensation adapts to changing process conditions in real-time
IR SEN 4xx – Infrared precision and flexibility for reliable web guiding performance.
Technical Details
Measurement principle
Infrared light scanning
Fork widths
38 mm | 101 mm
Measuring range
30 – 284 mm
Digital output
BST CANbus
Protection class
IP 40
Operation
Contactless, maintenance-free
Installation
Plug and play, compatible with BST controllers
Conformities
CE 2014/30/EU, RoHs 2011/65/EU
Download the product sheet
-
IR SEN 400 - 409 product sheetMore information about the sensors IR SEN 400 - 409.BST_HELP Open
