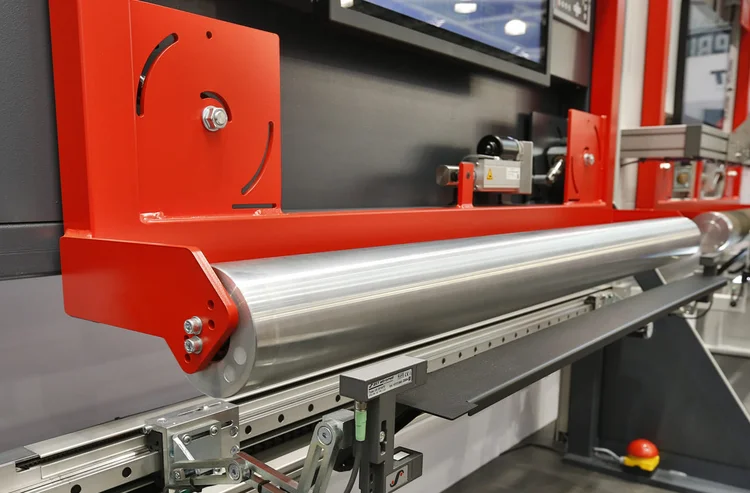

SMARTGuide – Proven solutions for optimal web guiding
SMARTGuide
Designed for a wide range of applications, SMARTGuide ensures consistently high-quality results, maximum flexibility, and process reliability even at high production speeds.
Description
In high-speed printing and extrusion processes, perfect web alignment is crucial for productivity and quality. Fluctuating web widths, material variations, and limited installation space often make precise guiding a challenge. BST SMARTGuide meets these requirements with proven technology, modular flexibility, and outstanding control accuracy.
Its modular architecture allows complete adaptation to specific production requirements. Designed for low material stress, SMARTGuide ensures stability and precision even with sensitive substrates. As a result, you produce less waste and reduce machine downtime. The optional motorized sensor adjustment with automatic edge seeking simplifies setup and improves accessibility - ideal for frequent width changes or complex machine layouts.
BST SMARTGuide enables the seamless integration of advanced BST sensor technology such as CLS CAM 100 or CLS CAM 200 and allows not only web edge or web center control, but also line, contrast, and object-based guiding. With preconfigured functionality and intelligent communication interfaces, it offers an efficient, future-proof solution for precise and reliable web guiding.
What are your values?
- Modular system design for flexible configuration
- Optional motorized sensor adjustment with automatic edge seeking
- Quick and easy integration into existing production lines
- Reduced setup times thanks to predefined plug-and-play functionality
- Reliable performance even with sensitive substrates
SMARTGuide – Intelligent web guiding for maximum precision and productivity
Technical details
Web width
750 - 3.400 mm
Max. web tension
1.000 N
Sensor positioning
Manual
Motorized with automatic edge seeking
Communication
Digital I/O, CAN, Profibus DP, Profinet, Powerlink, EtherCAT, Ethernet UDP, Ethernet IP
Power supply
24 V DC
Downloads
-
Web guiding brochureMore information about our web guiding systems, components and functionality.BST_HELP Open -
Declaration of conformity and incorporationOur web guiding systems correspond to the declaration of conformity and incorporation.BST_HELP Open -
Brochures at a glanceGet an overview about our product portfolio and download the needed brochures via QR code.BST_HELP Open
Videos
Get to know our web guiding solutions
Precise web guiding is essential for stable and efficient production. BST web guiding systems keep a wide variety of materials precisely on track from unwinding through processing to rewinding. With advanced sensor technology, fast actuators, and intelligent controls, BST ensures maximum process reliability, reduced waste, and consistently high product quality.
Whether in packaging, printing, battery production, or film converting: BST web guiding systems form the basis for smooth operation and precise web positioning, even at high speeds and with demanding materials.
Our SMARTGuide fits your requirements!
In wide web web production, requirements are often complex and unique. With SMARTGuide, customers can ensure precise web guiding that is modularly scalable and can be adapted to any application. A special feature is its flexible configurability, which enables tailor-made solutions for a wide variety of applications.
Ingo EllerbrockProduct Management Guiding & Control
